Solutions for MDVR - Mobile Digital Video Recorder / Fleet Dashcam
Capture indisputable video evidence, with AI.
Mobile Digital Video Recorder (MDVR) with Live Streaming & AI to protect your drivers, vehicle & cargo safety
KATSANA robust MDVR, Fleet Dashcam & DSM (Driver Status Monitor) solutions protect your business reputation by providing indisputable video evidence in event of accidents and insurance disputes.

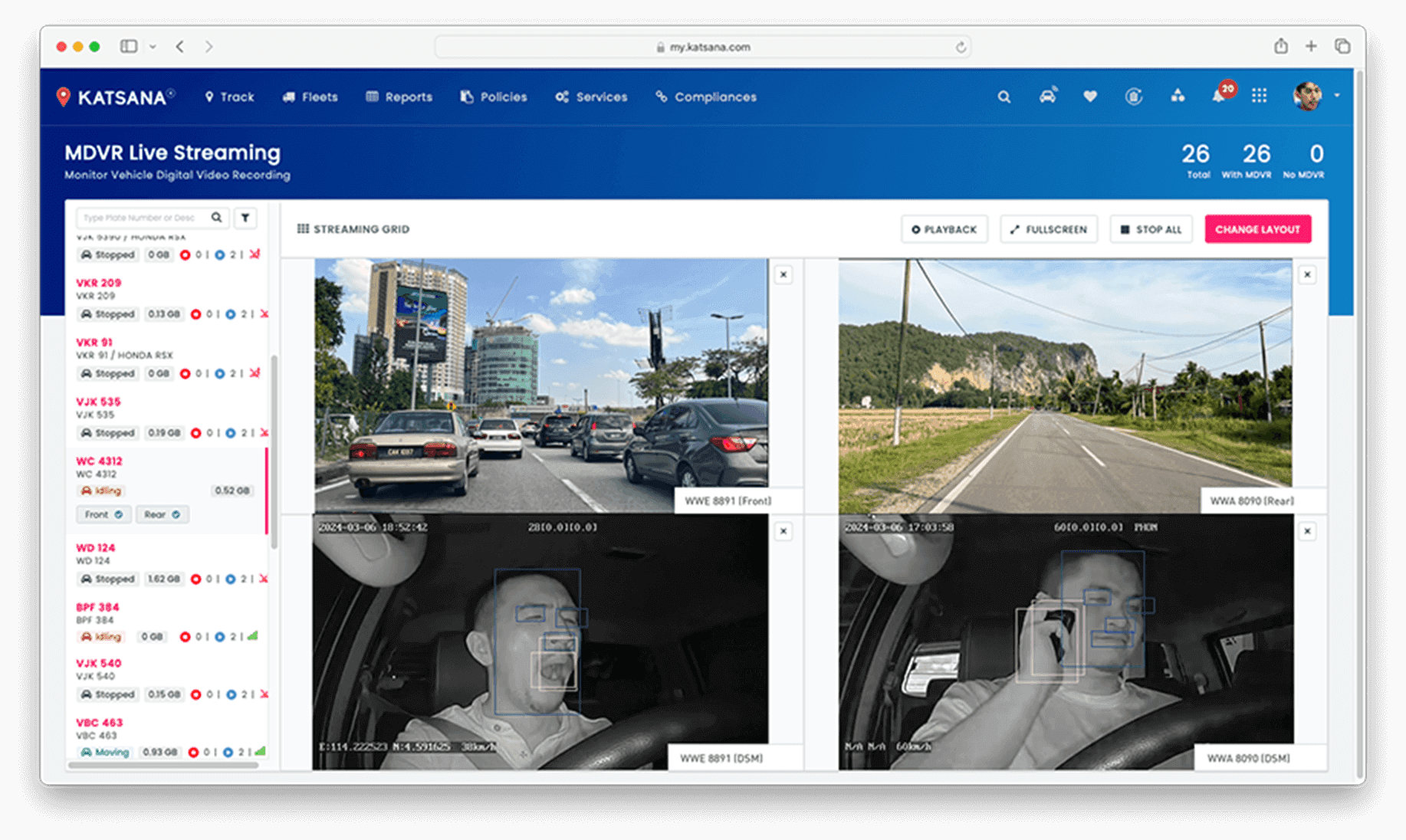

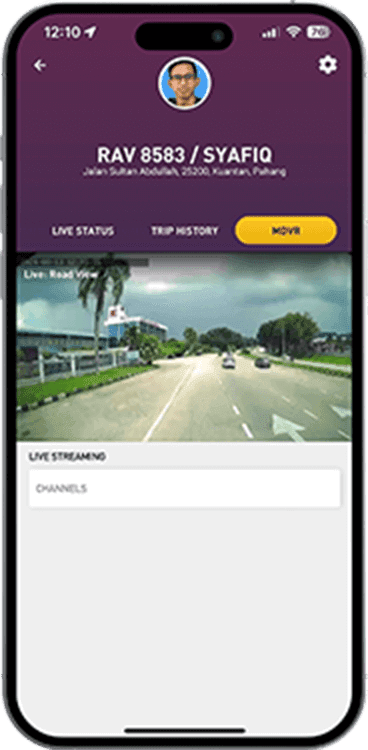

Stream live driving video
Monitor drivers and the road around them with live streaming views from up to 8 cameras at once.
Viewable on desktop browsers, IOS and Android apps.
Driver behavior videos

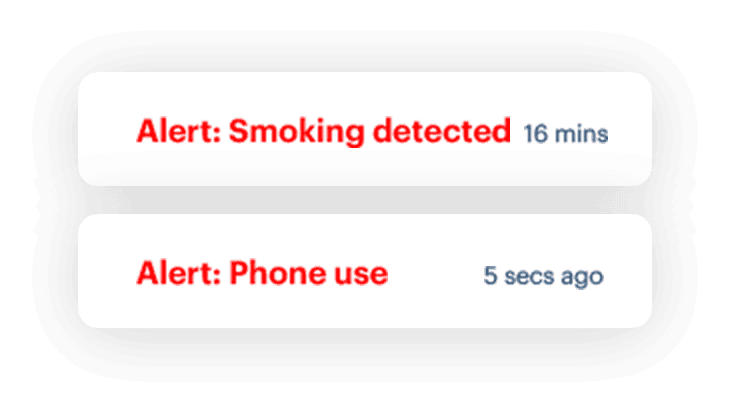

AI-powered video telematics detect unsafe driver behaviors such as use of mobile phone, smoking and fatigue driving.
Short footages are automatically uploaded to the cloud for review.
View video history remotely
With up to 300 hours of driving video stored in the MDVR, you can stream and download historical videos without having to physically access the vehicle.
Super convenient for large fleet operators.

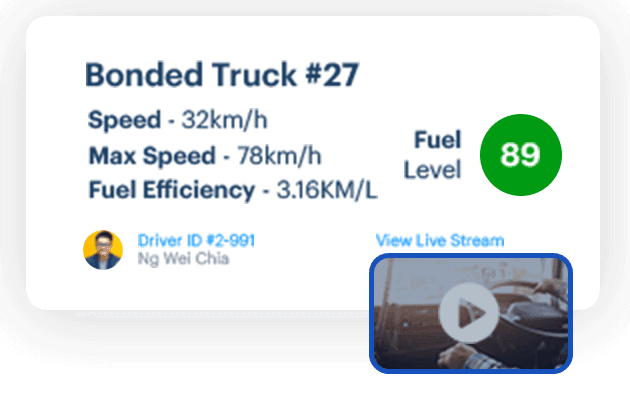

GPS tracking integration
View live vehicle location on the same platform, together with its video stream feed.
As always, viewable on desktop browsers, IOS and Android apps.
Driver behavior score
Powered by DriveMark to provide deep insight into driver behavior patterns. Drivers are ranked based on risk profile, enabling fleet managers to quickly identify at risk drivers early before its too late.
Local on-site support
We take pride in providing best in class support and customer service for fleet operators.
From customer success onboarding, to after-sales inspection, we have you covered for a piece of mind.
Advanced fleet dashcam, MDVR & video telematics solutions for modern fleet management
Getting Started
Choose between the highly advanced 8- or 4-Channel MDVR with or without live video streaming capability, or the smaller 2-Channel fleet dashcam with Advanced Driver Assistance System (ADAS) feature.
Getting Started
Choose between the highly advanced 8- or 4-Channel MDVR with or without live video streaming capability, or the smaller 2-Channel fleet dashcam with Advanced Driver Assistance System (ADAS) feature.
Advanced AI MDVR with Live Stream, ADAS, DSM & BSD
8 Channels / SSD & Cloud Storage
Standard MDVR with Local Storage & Live Stream
4 Channels / SSD & Cloud Storage
Lite MDVR for Motorcycles with Live Stream
2 Channels / SD Card & Cloud Storage
AI Fleet Dashcam with Live Stream, ADAS, DSM, BSD
4 Channels / SD-Card & Cloud Storage
Essential Upgrades
Popular hardware and software upgrades for added monitoring & management capabilities
Fully Managed, End-to-End
We manage everything from SIM & Data packages to installations, support & warranty services.

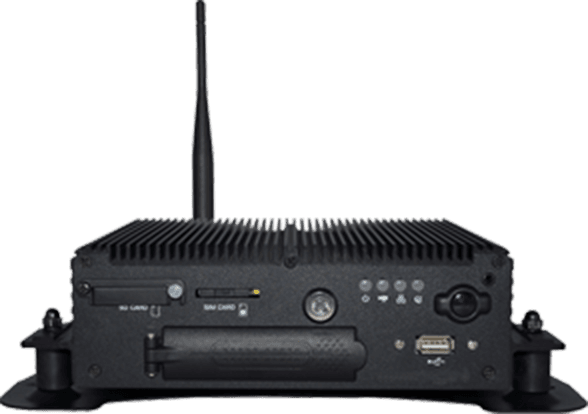

MD08-X1 - The complete video monitoring package
Mobile Digital Video Record (MDVR) with Live Streaming, Blindspot Detection (BSD), Driver Status Monitor (DSM) and Advanced Driver Assistance Systems (ADAS)
KATSANA Live MDVR provides unparalled video monitoring capabilities, allowing fleet operators to stream in-cabin and external cameras in real-time.
Its AI-powered Driver Status Monitor (DSM) camera provides detection of risky driver behavior and alerts you for review.
When paired with ADAS, this package alerts drivers of dangerous road conditions in front of the vehicles.
Note: Device physical appearance may change over time.
Live Video Streaming from up to 8 channels AHD, Digital & AI cameras, viewable on an integrated KATSANA Fleet Management platform & KATSANA mobile apps on iOS and Android smartphones.
Driver Status Monitor (DSM) enables detection of driver facial features, reducing accidents from fatigue, distracted driving, phone use, drowsiness etc.
Live GPS tracking provides real-time location update every 5-20 seconds, with 12 months location history.
Fleet Management System with advanced monitoring capabilities & extensive operational reports for day-to-day fleet operations.
Large internal storage of up to 4TB on ruggedized Solid-State Drive (SSD) & SD card ensues long video recording and longevity in operational environment.
Secure cloud upload & storage when risky driver behavior is detected, preventing potential data loss in event of accidents.
Remote video download allows fleet managers to review and download driving videos without having to physically access the vehicles.
Secure physical file storage with key locks to prevent unauthorised access and tempering of video evidence.
Automatic video recording when vehicle is switched on. Includes detection of shocks which triggers mandatory recording so that important videos are not lost.
Extensive upgrade options with numerous hardware and software features to suit your fleet's uniques requirement.
View upgrade list >

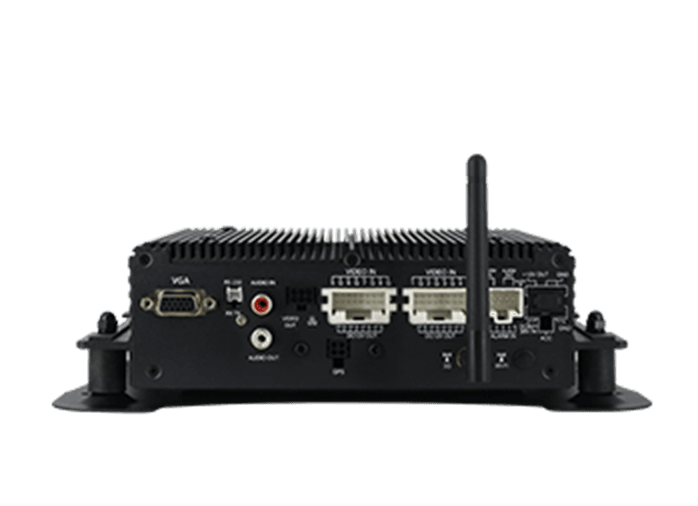

MD08-A1 - Automotive MDVR with local storage
Mobile Digital Video Record (MDVR) with Live Streaming, fast SSD storage and optional Cloud storage
Robust, upgradable MDVR with 4-Channels & SSD Storage that is future-proofed with ability to upgrade when necessary.
It supports up to 4TB of industrial-grade Solid State storage and ability to display video on an external monitor in the vehicle.
View upgrade list >Note: Device physical appearance may change over time.
Automatic video recording when vehicle is switched on. Includes detection of shocks which triggers mandatory recording so that important videos are not lost.
Large internal storage of up to 4TB on ruggedized Solid-State Drive (SSD) & SD card ensures long video recording and longevity in operational environment.
Secure physical file storage with key locks to prevent unauthorised access and tempering of video evidence.
H.264 video compression reduces video file size while maintaining a sharp and crisp image.
Audio/Video VGA output provides ability to display live videos and playback of past recorded videos on an external monitor in the vehicle.
G-force sensor potential collisions and risky incidents which triggers mandatory video recording that is safely stored.
Upgrade option: Live GPS tracking provides real-time location update every 5-20 seconds with 12 months location history.
Upgrade option: Fleet Management System with advanced monitoring capabilities & extensive operational reports for day-to-day fleet operations.

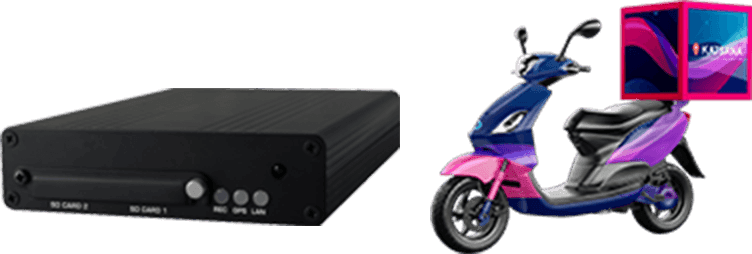

MD04-A1 - Lite MDVR for Motorcycles
Lite Mobile Digital Video Record (MDVR) with 2-Channels, local SC-Card storage, optional live stream & cloud storage
This Lite MDVR for motorcycles comes in small physical size fit for motorcycles. It has 2-Channels cameras (front and rear) with support of up to 512GB SD-Card storage.
Note: Device physical appearance may change over time.
Small physical size designed specifically for motorbikes and three-wheelers.
Internal storage of up to 512GB on industrial SD Card with one extra slot for backup against corrupt files.
Secure physical file storage with key locks to prevent unauthorised access and tempering of video evidence.
H.264 video compression that reduces file size. Videos recorded in 4MP resolution.
Energy efficient with low power consumption and optimized heat dissipation.
Supercapacitors that protects file recording and integrity in event of power interruption.
*Despite its small soze. MD-04-A1 MDVR can be upgraded with Live Streaming and Cloud storage features.

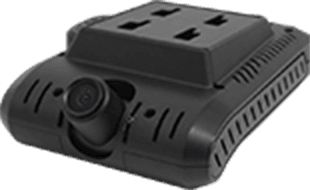

DC04-A1 - AI Fleet Dashcam
AI Fleet Dashcam for Fleets with 4-Channels, ADAS, DSM and Blind Spot Monitor (BSD) 1080P, H.265
Advanced Plug-n-Play Fleet-focused Dashcam with a built-in AI processor to detect driving events like forward collision and improper driver behavior such a using mobile phone usage and distracted driving.
Note: Device physical appearance may change over time.
Advanced Driver Assistance System (ADAS) provides drivers with advanced warning of dangerous road conditions in front of the vehicle.
Driver Status Monitor (DSM) detects driver attentiveness during driving such as fatigue, use of phone and smoking.
Blind Spot Monitor (BSD) alerts the driver when objects are detected within the blindspot areas of the vehicles.
Built-in 1-channel 1080P camera and 3 external HD channels to support rear/cabin/passenger cameras.
Supports low-power sleep mode to reduce power consumption when the vehicle is inactive.
Supports large Micro-SD storage of up to 256GB storage.
Camera & Hardware options
KATSANA MDVR solutions comes with numerous camera options to suit different needs & environmental exposures.
Camera & Hardware options
KATSANA MDVR solutions comes with numerous camera options to suit different needs & environmental exposures.
1080P / IP66 / IR

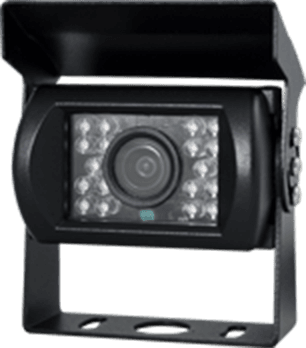

Base-mounted waterproof Rear View Camera
Suitable for any type of vehicles, popular for bus & heavy vehicles.
- Sensor: 1/2.8" CMOS Image Sensor
- Lens: 3.6mm Lens
- IR: 18 Infrared LEDs, 5M range
- Resolution: 1920px (H) × 1080px (V)
- Recording: 1080p @ 30fps, H:85°
- Operating temperature: -20° to +50° Celcius
- Dimensions: 77mm x 54mm x 94mm
- Weight: 350g
1080P / IP66 / IR
Side-mounted waterproof Camera
Suitable for any type of vehicles, popular for bus & heavy vehicles.
- Sensor: 1/3" CMOS Image Sensor
- Lens: 4.0mm Lens
- IR: 10 Infrared LEDs, 3M range
- Resolution: 1920px (H) × 1088px (V)
- Recording: 1080p @ 30fps, H:85°
- Operating temperature: -10° to +60° Celcius
- Dimensions: 32mm x 52mm x 59mm
- Weight: 60g
1080P

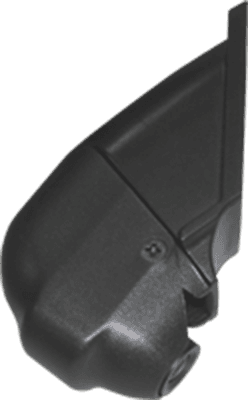

In-cabin Wide-lens Camera
S-Type
Suitable for slanting windshield vehicles (Sean, police cars, MPV, SUV, Van, RV).
L-Type
Suitable for upright windshield vehicles (Truck. Bus, Pickup, Trailer).
- Sensor: 1/2.8" SONY CMOS Sensor
- Lens: 60mm Lens
- Resolution: 1920px (H) × 1080px (V)
- Recording: 1080p @ 30fps, H:120°
- Operating temperature: -10° to +60° Celcius
- Dimensions: 32mm x 100mm x 55mm
1080P / IP66 / IR

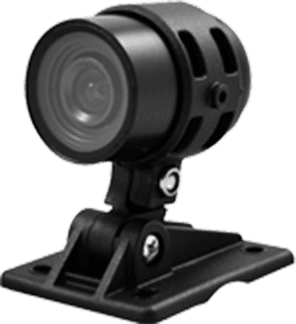

External waterproof infrared Camera
Suitable for external recording purposes, in particular motorcycles.
- Sensor: 1/3" CMOS Sensor
- Lens: 2.8mm Lens
- Resolution: 1920px (H) × 1088px (V)
- Recording: 1080p @ 30fps, H:85°
- Operating temperature: -10° to +60° Celcius
- Dimensions: 45mm x 53mm x 30mm
- Auto gain control

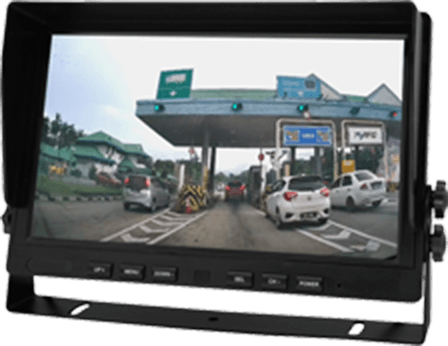

In-cabin LCD Monitor
5" / 7" / 10"
Suitable for any type of vehicles, this monitor allows drivers to view real-time camera footage.
- Screen size: 10.1" 16:9 LED HD
- Resolution: 1280 (H) × 800 (V)
- Color system: PAL/NTSC
- Speaker: Optional
- Signal Input: AV/BNC/VGA/HD/USB
- Operating temperature: -10° to +50° Celcius
- Dimensions: 245mm x 365mm x 12mm
Popular solution upgrades
Upgrade your MDVR solution with new features and capabilities listed below. Pick the hardware that best suit your fleet needs.
Popular solution upgrades
Upgrade your MDVR solution with new features and capabilities listed below. Pick the hardware that best suit your fleet needs.
